Water damage is one of the most common and costly issues homeowners face. A properly installed foundation drain can prevent water from entering your basement, protecting your home and belongings.
In this guide, we’ll walk you through the process of installing a foundation drain, ensuring your home remains dry and safe.
Table of Contents
What Is a Foundation Drain?
A foundation drain is a system designed to redirect water away from your home’s foundation. It typically consists of a perforated pipe surrounded by gravel, allowing water to flow into the pipe and be directed away from the structure.Pinterest+3The Spruce+3Fine Homebuilding+3Better Homes & Gardens
Why You Need a Foundation Drain
Water accumulation around your foundation can lead to serious issues, including:
-
Basement flooding: Excess water can seep into your basement, causing damage to walls, flooring, and belongings.
-
Mold and mildew growth: Damp environments promote the growth of mold and mildew, which can affect indoor air quality.
-
Structural damage: Prolonged water exposure can weaken the foundation, leading to cracks and settling.
Installing a foundation drain helps prevent these problems by directing water away from your home.
Tools and Materials You’ll Need
Before you begin, gather the following tools and materials:
-
Shovel or trenching tool
-
Perforated drain pipe (4-inch diameter)
-
Clean gravel (½- to ¾-inch size)
-
Filter fabric (geotextile)
-
PVC pipe for downspout connection
-
Pipe connectors and elbows
-
Level
-
Measuring tape
-
Wheelbarrow
-
Safety gloves and gogglesStratum Structural Systems+6Architectural Digest+6Fine Homebuilding+6basc.pnnl.govtheconstructor.orgFine Homebuilding+15InspectApedia+15American Dry Basement Systems+15
Step-by-Step Installation Guide
Step 1: Plan the Drainage System
Determine the path of the drain, ensuring it slopes away from the foundation. The recommended slope is 1/8 inch per foot to allow gravity to assist in water flow. Identify the discharge point, such as a dry well or storm sewer, ensuring it’s at least 10 feet from the foundation .InspectApedia+4Architectural Digest+4theconstructor.org+4basc.pnnl.gov
Step 2: Excavate the Trench
Using your shovel or trenching tool, dig a trench around the perimeter of your foundation. The trench should be approximately 6 inches wide and 18 to 24 inches deep, depending on your specific needs and local building codes .Architectural Digest
Step 3: Lay the Gravel Base
Place a 6-inch layer of clean gravel at the bottom of the trench. Ensure the gravel is free of fines to prevent clogging of the drain pipe .basc.pnnl.gov

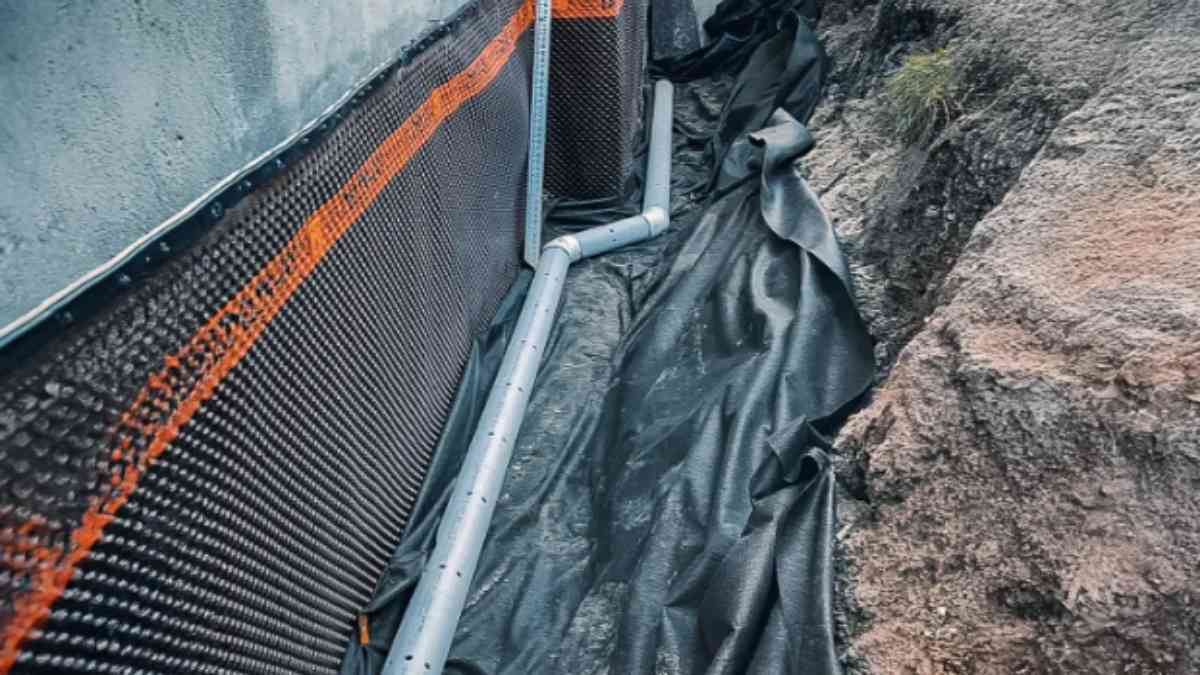

Step 4: Install the Perforated Pipe
Lay the perforated drain pipe on top of the gravel, ensuring the holes face downward (approximately at the 4 o’clock and 8 o’clock positions). This orientation allows water to enter the pipe from the surrounding soil .JLC Online
Step 5: Wrap the System
Cover the pipe and gravel with filter fabric to prevent soil infiltration and clogging. Wrap the fabric over the top of the gravel, ensuring it overlaps the sides of the trench.InspectApedia+2Fine Homebuilding+2basc.pnnl.gov+2
Step 6: Backfill the Trench
Carefully backfill the trench with soil, compacting it as you go to eliminate air pockets. Avoid using heavy machinery near the foundation to prevent damage.
Step 7: Test the System
After installation, test the system by running water through the pipe to ensure proper flow and drainage. Check for any low spots or areas where water accumulates and adjust as necessary.
Maintenance Tips
-
Regular Inspection: Periodically check the system for signs of clogging or damage.
-
Clean Gutters: Ensure gutters and downspouts are clear to prevent water from overflowing onto the foundation.
-
Proper Landscaping: Avoid planting trees or shrubs near the foundation that could obstruct the drain or damage the pipe.
Conclusion
Installing a foundation drain is an effective way to protect your home from water damage. By following this guide, you can ensure your foundation remains dry and your home stays safe.Fine Homebuilding
Frequently Asked Questions
1. How deep should a foundation drain be?
The drain should be installed at least 6 inches below the interior slab to effectively collect and divert water
